Bestman CE Electrocardiogram/ ECG-213 Hospital Use

Model No.︰

ECG-213

Brand Name︰

Bestman

Country of Origin︰

China

Unit Price︰

US $ 550 / pc

Minimum Order︰

20 pc

Share on:

Product Description

Features:
With auto-interpretation function; can assist doctor to diagnose;



Color LCD makes the images more clear for guaranteeing the reliability of the images ;



Designed with technology of Digital Signal Processing and Digital Isolation;



Synchronously 12 lead acquisition and printing 3 live leads record of them,Using high resolution thermal roll paper for recording ECG waveform, Multiple optional digital filter ( including baseline drift filter ),using auto-regulation baseline drift filter which can inhibit any baseline drift ,or curb caused by patient's movement and auto- optimize the position for printing;



Auto measurement / analysis system shows the real-time heart rate which makes it easier for
doctor's diagnosis;



Can store maximum of 128 patients' ECG data and enable user to replay data analyze and print it
from database;



High-speed USB interface and traditional RS-232 interface are both built–in for communicating
with computer as well as other devices;



Data can be received through one of the interfaces and displayed by the software which is also
provided by our company (optional);



Specifications:
LCD display: 640×480  TFT  5.7 inch graphic LCD



Lead: standard 12 leads



Sampling method: 12 leads synchronously acquisition



CMRR: >80dB, > 100dB  (with AC filter)



Sensitivity: AUTO;2.5; 5; 10; 20 mm / mV



Paper speed: 6.25; 12.5; 25; 50 mm / s( ± 3%)



Paper size: 80mm x 30m roll type



Recording mode: Thermal Array printing



Power supply: AC: 110-230V (±10%) , 50/60 Hz±1Hz; 40 VA
                           DC: 14.4V rechargeable Li-ion battery

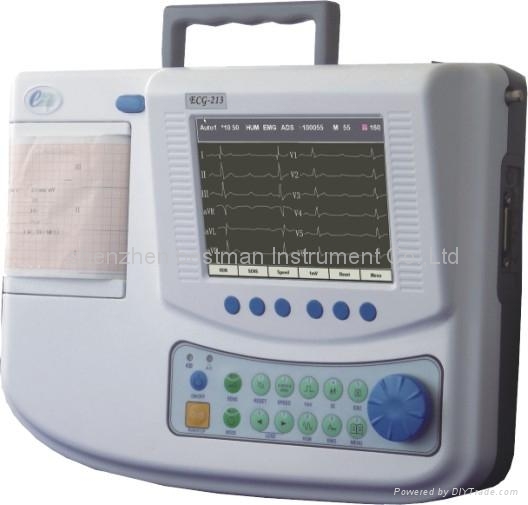

Product Image
